Simple Motion Sensor scene

[theplayernll 0]

I made a simple (blokc) scene that if a motion sensor is triggered that a light will go on for 60 sec.



But I have a small problem. The motion sensor checks every 8 seconds if there is any movement. So when the above scene is running, after 8 seconds he want to trigger it again and I get a message "to many instances".



To prevent this I found a solutution to check if the script is running by making a new varibale "Scene_Loopt" this can have a value on or off. I want to run this vallue to on if the scene is still running and off when its done. But i'm stuk how to conffigure this in the scene.



Now this is the scene:

Please login or register to see this image.

/monthly_2020_04/scene.PNG.75334ddfb6ce5ad7ba9994b07c6621e4.PNG" />



[cag014 731]

The problem that there is no delay for updating Scene_loopt back to "Uit" after 60 seconds.

You have two options:

=============  1  ===============================================

You need to create another block scene where the scene's trigger is Spotjes Hal like:

IF

Spotjes Hal == off

Please login or register to see this image.

/uploads/monthly_2020_04/image.png.ff0d0f50a1af310d9ffe2a67fa6f0bb6.png" />

Please login or register to see this attachment.



Don't forget to remove same line

Please login or register to see this attachment.

from original scene



==================  2 ================

You can set sensor delay to 60 seconds and create another scene like:

IF

Bewegingssensor == safe

then

  without delay.



In this case you don't need to use Scene_loopT variable

Please remove

Please login or register to see this attachment.

and

Please login or register to see this attachment.

from original scene



Of course you can create a Lua scene as well.



Edited April 29, 2020 by cag014

[theplayernll 0]

Thanks for your answer, don't get everything because your pictures are not working ?!





Quote



The problem that there is no delay for updating Scene_loopt back to "Uit" after 60 seconds.

You have two options:

=============  1  ===============================================

You need to create another block scene where the scene's trigger is Spotjes Hal like:

IF

Spotjes Hal == off

Please login or register to see this link.

Please login or register to see this attachment.



Don't forget to remove same line

Please login or register to see this attachment.

from original scene



==================  2 ================

You can set sensor delay to 60 seconds and create another scene like:

IF

Bewegingssensor == safe

then

Please login or register to see this link.

  without delay.



In this case you don't need to use Scene_loopT variable

Please remove

Please login or register to see this attachment.

and

Please login or register to see this attachment.

from original scene



Of course you can create a Lua scene as well.





Edited April 29, 2020 by theplayernll

[10der 832]

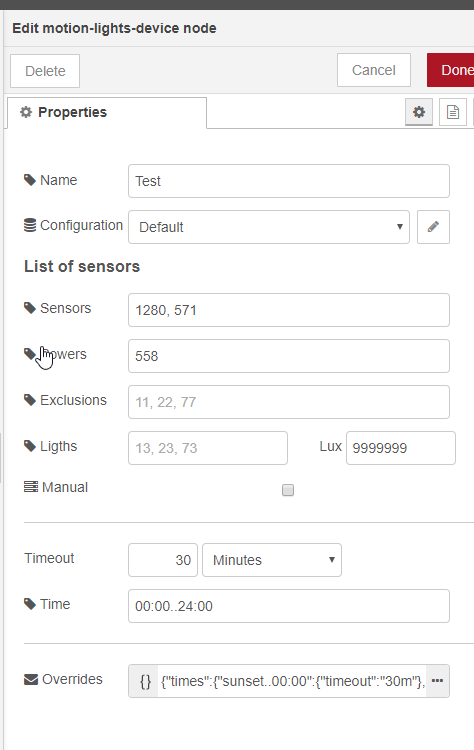

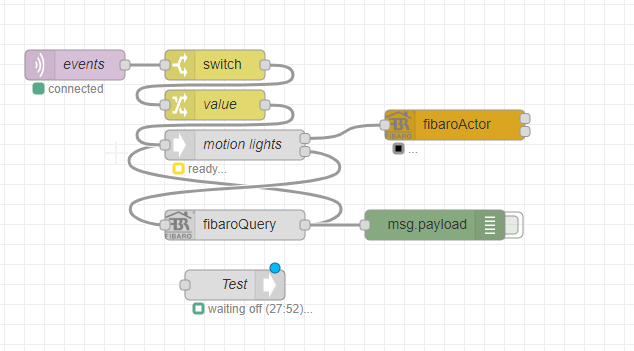

the simple motion scene



links:

Please login or register to see this link.



Please login or register to see this link.



Please login or register to see this link.
