QA Honeywell Evohome

[petrkl12 228]

QA for Honeywell Evohome



60 days trial period - than you need license key: 30EUR via Paypal account

Please login or register to see this code.

For license key I need your HC3 (or HC3L or Yubii) serial number: HC3-xxxxxxxx

Ideally include your device serial number and QA name in the payment note.



QA:

Please login or register to see this attachment.



Icons:

Please login or register to see this attachment.



How to install:

1. upload QA to HC3

2. set variables LoginName and LoginPassword

3. you should see list of Evohome devices

4. you can create child QAs only for selected evohome devices or create QAs for all devices via press one button



Other parametres:

Icon - id of icon for main QA (ie. 1401) you have to upload icon via other devices ie. multisensor and get icon number (save icon picture from browser and there is icon id)

PrefTempAPI = V1 or V2 - which api version should be used for temperature reading (V1 is older but more accurate, V2 is newer api and use values as you have visible in display, default is V1 (I preffer more accurate temperature, in details you can see both values)

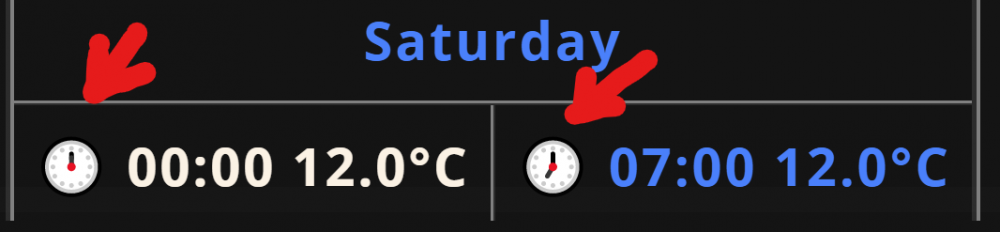

ThermBtnSet = "TemporaryOverride" or "PermanentOverride" - which mode will be setup when you press button Set (as on picture bellow)

Please login or register to see this link.

ThermBtnSetTime = 0 - this is for TemporaryOverride mode in case of press button Set, time in hours, 0 means till next change based on schedule, def. is 0
EvHUpdtInterval = 1 - refresh interval of values from evohome devices in minutes, def. 1 minute

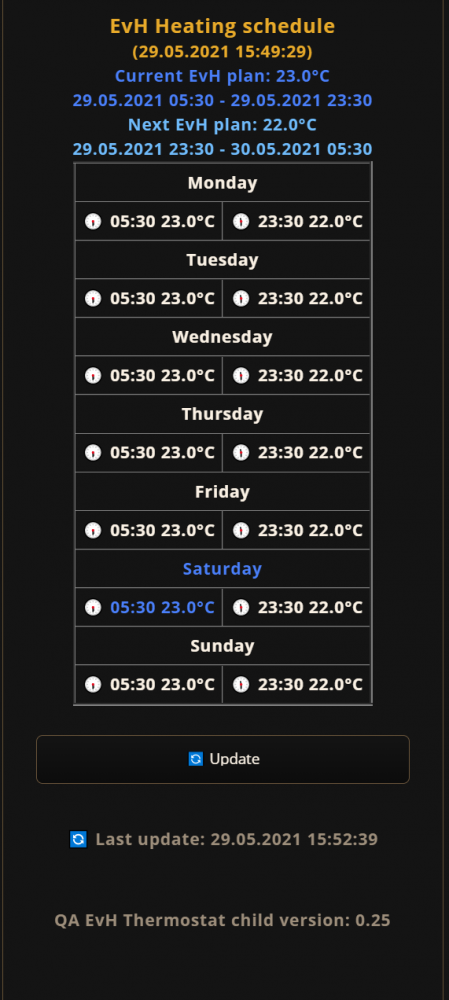

EvHUpdtSchedule = 60 - refresh interval for schedule plan for thermostats from evohome in minutes, def. 60 minutes
EvHUpdtInstall = 240 - refresh interval for reading instalation things from evohomen ie. new devices , def. 240 minutes



For manual refresh you can press button Update. Also some parametres you can setup directly in QA for thermostats ot temperature.



There is also autoupdate mechanism. All your QA Evohome devices can be updated remotely.



QA is developed only for EMEA region. You should check if you are able to login to your Evohome here

Please login or register to see this link.





Please login or register to see this attachment.



Please login or register to see this attachment.



Please login or register to see this attachment.

Please login or register to see this attachment.



Please login or register to see this image.

/monthly_2021_05/EvH_Temp1.png.28df7e9e10cb7df8910968c389bbff09.png" />

Edited March 7, 2023 by petrkl12

[pnutp0wer 23]

Can we help with translations?

[petrkl12 228]

It’s not prepared for translation yet

I will need to help with DHW because I don’t have it connected to Evohome…

[pnutp0wer 23]

What do you mean by DHW

[petrkl12 228]

DHW = domestic hot water = boiler for hot water connected to Evohome ?

[pnutp0wer 23]

Ah ok! Maybe you can count on the users from this topic:



[petrkl12 228]

1 hour ago, pnutp0wer said:

Ah ok! Maybe you can count on the users from this topic:



ok, I hope that I will have some voluntaries for testing because without them I'm not able to develop/test it...

[ArjanC 1]

i'll volunteer!

[ArjanP 0]

I volunteer also. And let me know when you want to do a local translated version. I'll contribute Dutch.

[petrkl12 228]

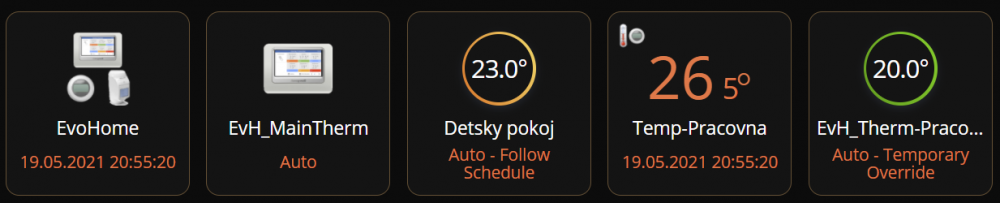

some news:

- added calling APIs version1 where is more accurate temperature

- added support for DHW (without any testing)

- some design changes



Please login or register to see this attachment.



Please login or register to see this attachment.



?





[WJM 1]

On 5/20/2021 at 2:50 PM, petrkl12 said:

ok, I hope that I will have some voluntaries for testing because without them I'm not able to develop/test it...

Let me know when you want to test pilot, are you also working on the  cool function of the evohome??

[petrkl12 228]

I will add you to testing group. I didn't know that Evohome is also for cooling

[Winnetoe 2]

Hello

I hav also a evo home systeem evo touch and the HCE-80 and a HC3

Maybe i can help for testing

greetings Cor



[Winnetoe 2]

Hello

I hav also a evo home systeem evo touch and the HCE-80 and a HC3

Maybe i can help for testing

greetings Cor



[petrkl12 228]

I have added you to testing group

[Martijn79 0]

What is the status of this development?

[petrkl12 228]

Development is done. I'm only lazy to write manual



[Robin_Hood753 0]

Hello, I am searching for a while now for EvoHome support on the HC3.



If the integration is ready, I want to know where to download it and if it is still in the testing phase, then I want to volunteer to help testing please  .



My EvoHome setup:

EvoTouch + HR92 + HCE80

[WJM 1]

is there an update in the app, and if so, where can I download and try it.  Recently installed an Elga Ace next to my Tzerra Ace and running it with Evohome. Can't wait till next summer and try the cooling mode.





[assosboy 0]

I would also like to volunteer for testing.

I have Evohome with HR92 radiator valves and BDR91 relay.

[Synesthesia 0]

This would be super interesting to me. I have a the Gateway RFG100 with just a thermostat.



I was already looking for another thermostat which can be controlled via ZWave and the HC3 but I cant find anyhing which supports Opentherm.
